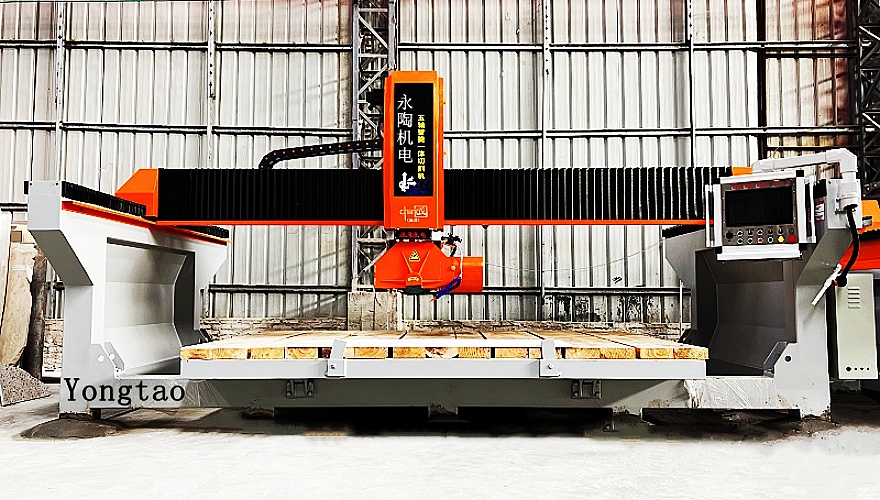

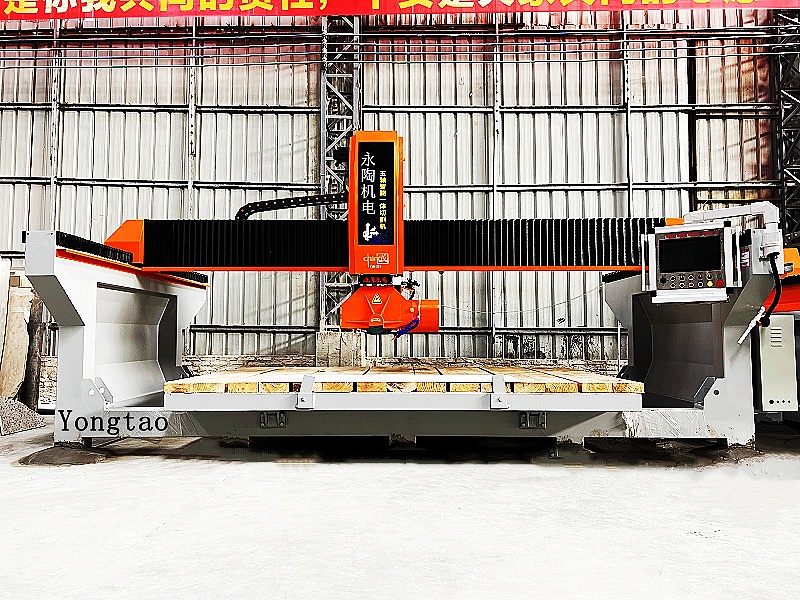

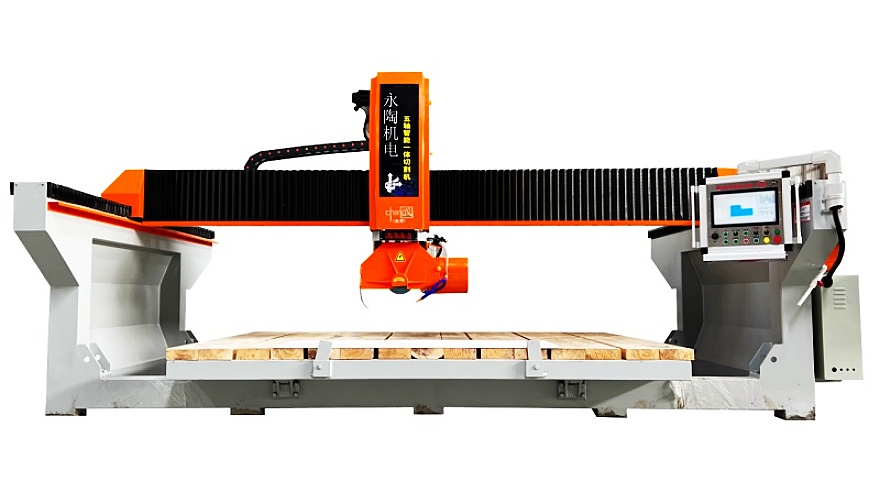

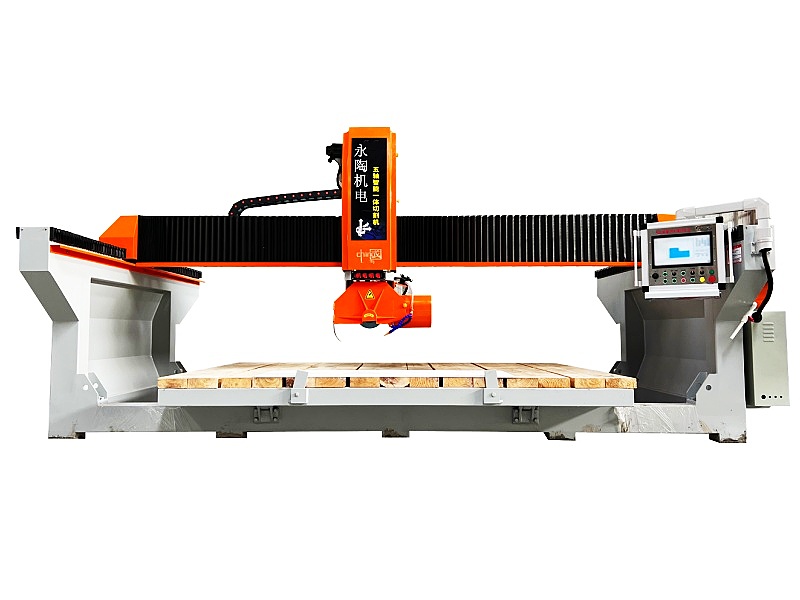

YSQZ-3200-5L 5-Axis CNC Stone Cutting Machine

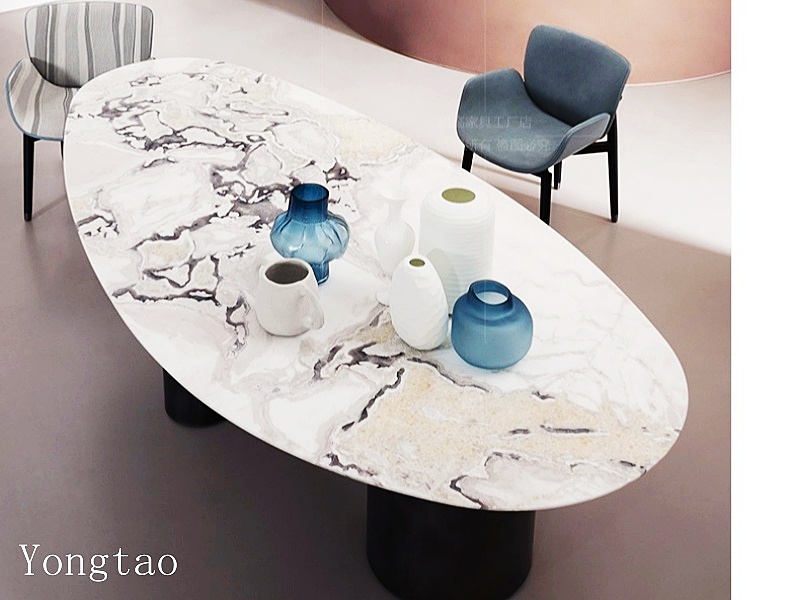

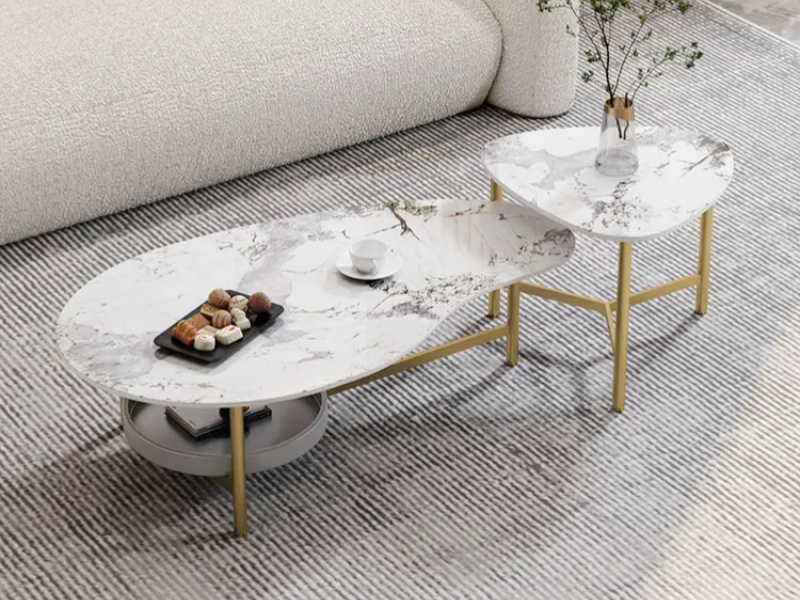

The YSQZ-3200-5L 5-Axis CNC Stone Cutting Machine, launched by Yongtao Machinery, is specifically designed for stone processing factories, meeting a wide range of complex cutting needs. This CNC bridge saw features an innovative 5-axis design, offering various cutting modes including circular, oval, 45-degree, L-shaped countertops, basin holes, and more, making it a versatile and efficient stone cutting saw.

This 5-axis CNC stone cutting machine operates with X, Y, Z, A, and C axes, capable of multi-axis three-dimensional cutting. The A-axis achieves 0-90° automatic rotation, while the C-axis supports 0-360° full-range rotation, making it suitable for a variety of complex stone cutting tasks. Equipped with a high-precision RV reducer, it enhances cutting accuracy, ensuring that each cut meets the desired results, especially excelling in granite cutting applications.

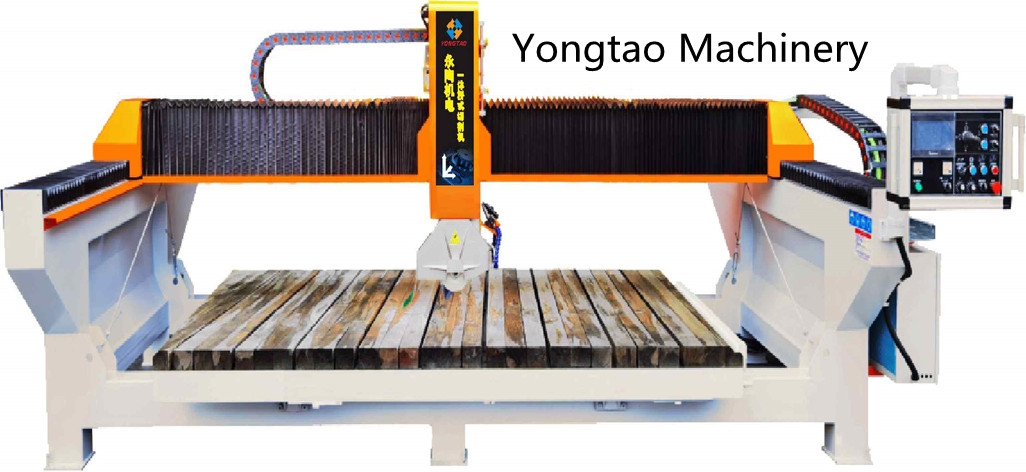

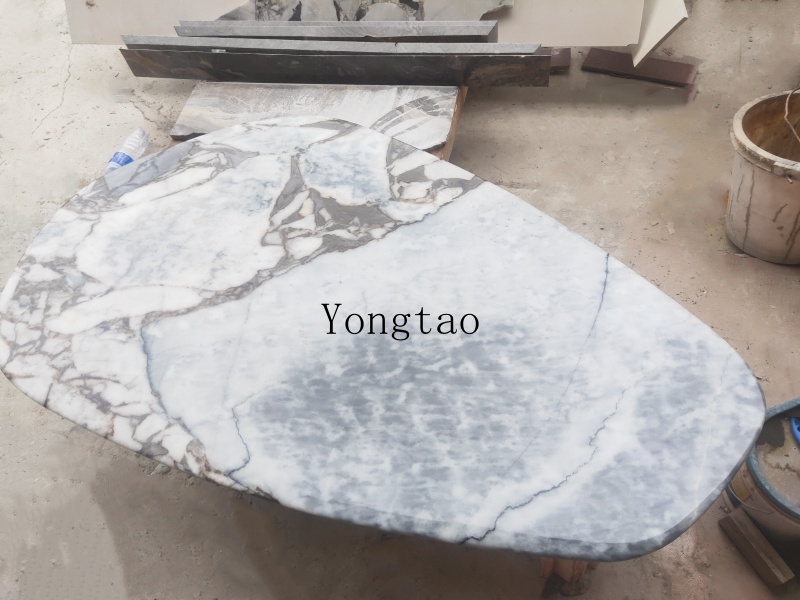

The YSQZ-3200-5L CNC Marble Cutting Machine is equipped with an automatic tilting table, significantly reducing manual labor intensity. Particularly when cutting large-sized stone materials, the tilting table design makes the unloading process more labor-saving and efficient, improving overall work efficiency. The machine supports horizontal and vertical cutting, multi-angle diamond cutting, countertop cutting, and irregular shape cutting, making it an ideal choice for stone processing factories.

In terms of its operating system, this stone cutting saw features an intelligent photo layout positioning function, capable of automatically measuring the thickness of the slab and the size of the tool for precise control. Users only need to input data to easily complete complex cutting operations. Additionally, the machine supports multiple language conversions, providing a convenient operating experience for global customers.

The YSQZ-3200-5L 5-axis CNC bridge saw is equipped with a hydraulic tilting power system, using hydraulic cylinders as the core power source, offering high redundancy and wide adaptability. The machine supports four-sided chamfering (0-90 degrees), making it suitable for various cutting tasks involving granite, marble, and other stones. Whether it's sintered stone, large ceramic slabs, quartz, or granite, this equipment showcases outstanding performance.

The machine is equipped with high-quality imported spindles and a five-axis control system, ensuring cutting stability and precision. The use of Yaskawa servo drives from Japan and imported gears, racks, and guide rail systems from Taiwan further enhances the machine's operational efficiency and service life. The linear infrared emitter head displays the cutting path, providing precise positioning for the cutting process.

The YSQZ-3200-5L granite bridge saw’s 360-degree omnidirectional swing function makes the cutting process more flexible. The 85-degree tilting table design greatly facilitates loading and unloading operations, reducing manual intervention and increasing overall work efficiency. The operation is simple and easy to learn, requiring only data input to complete precise cutting tasks.

This five-axis CNC stone cutting machine is widely used for processing sintered stone, large ceramic slabs, quartz, marble, artificial stone, and granite, and is highly favored by stone processing enterprises both at home and abroad. Its high efficiency and multifunctional features provide an ideal cutting solution for prefabricated building materials and home decoration materials industries.

Yongtao's 5-axis CNC granite cutting saw has established an excellent reputation in the stone cutting saw market with its high precision and intelligent operation. In the future, Yongtao will continue to develop more advanced stone cutting equipment, providing global customers with better solutions and services, promoting technological progress and development in the stone processing industry.

The YSQZ-3200-5L 5-axis CNC stone cutting machine is not only a leader in granite cutting saws but also a globally applicable intelligent CNC bridge saw. With its outstanding performance and operational convenience, it has become the preferred equipment for stone processing factories, setting a new benchmark in the stone cutting field.

Technical Parameters:

Stone Bridge Saw Cutting Video:
