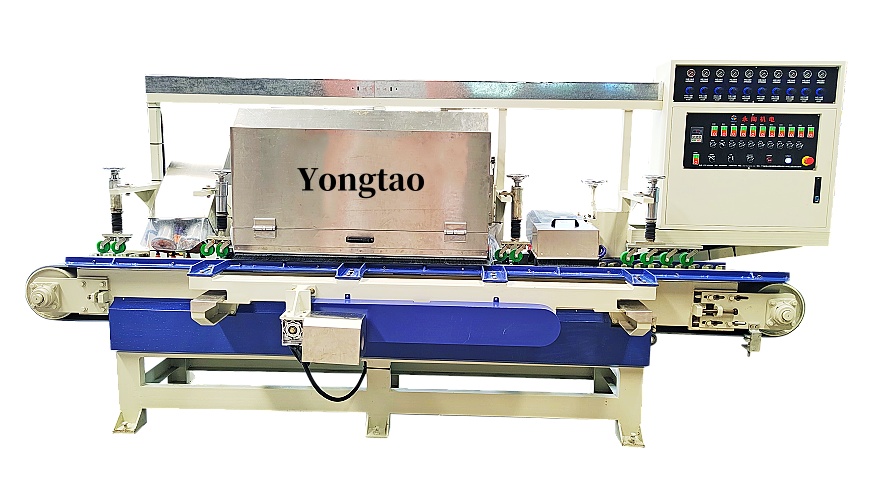

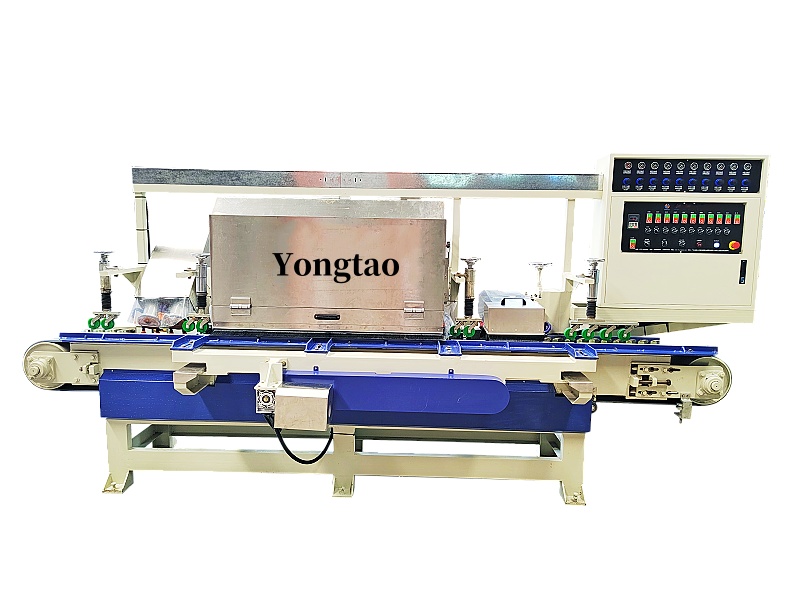

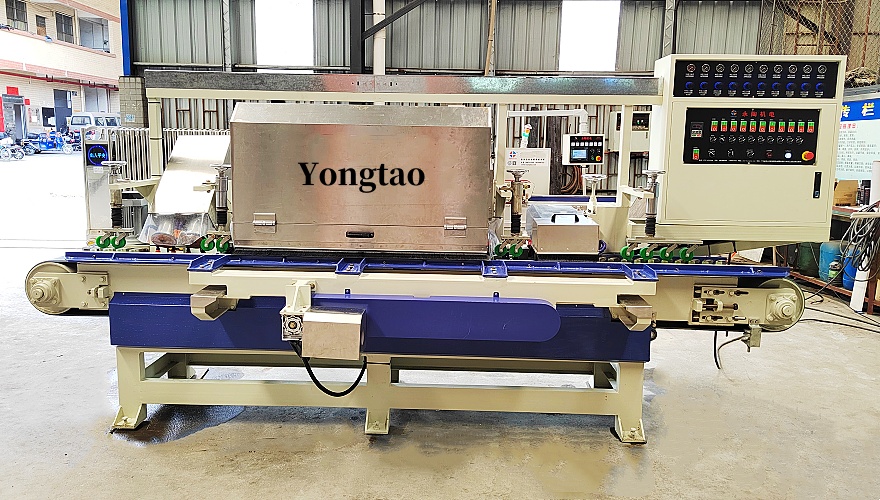

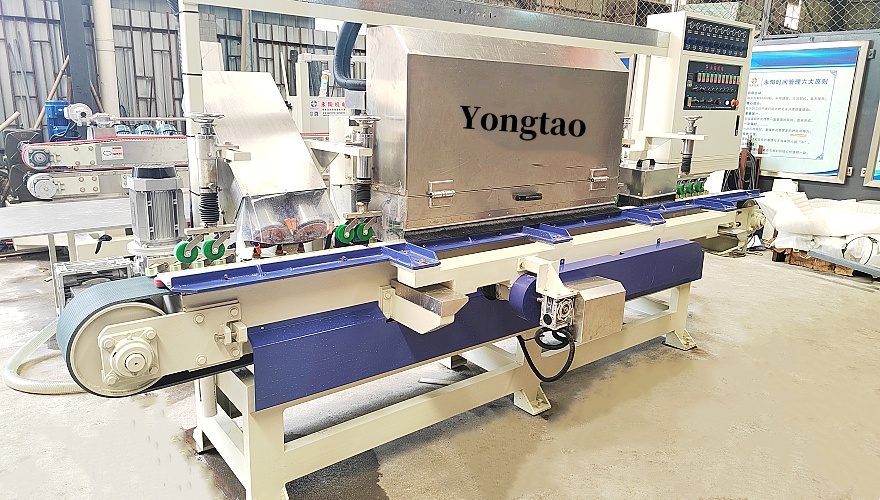

Yongtao Machinery has meticulously designed the YSPU-100 small marble polishing machine, specifically focused on the surface polishing of small-sized stone slabs. Its advanced technology and unique design make it a standout in the realm of small stone polishing machines, particularly suitable for stone processing factories that require less processing volume but have demands for small-sized surface polishing.
This machine is a 1+8+2 stone surface polishing unit, applicable for both marble and artificial stone. Its electroplated thickness grinding wheel design ensures uniform thickness and smoothness of the stone surface. Additionally, the right entry processing direction enhances operational convenience, aligning with practical site requirements.

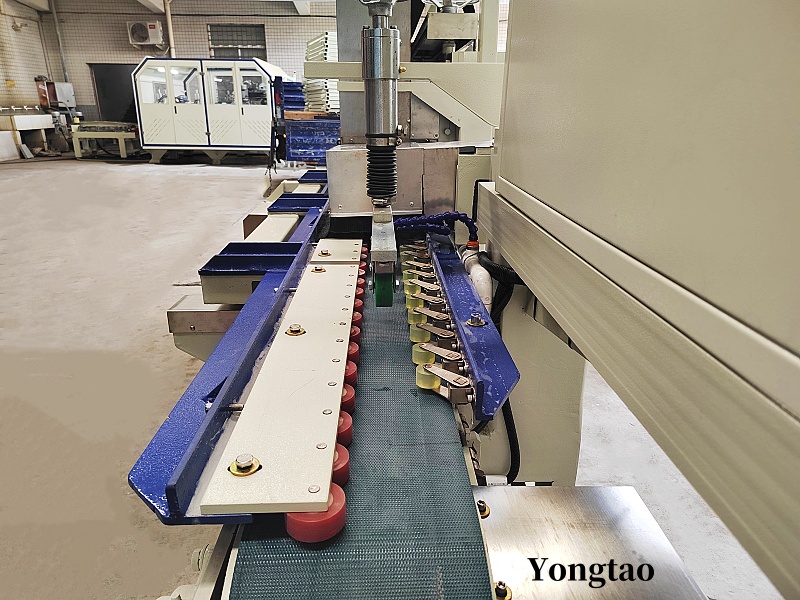

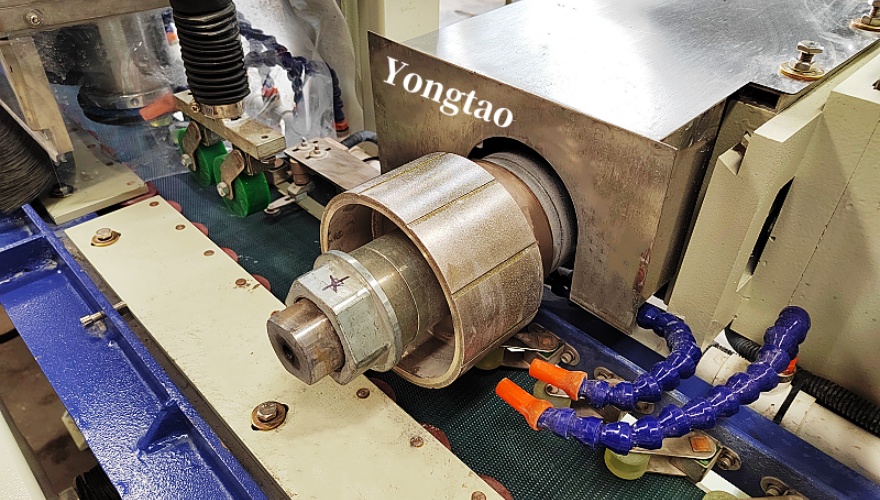

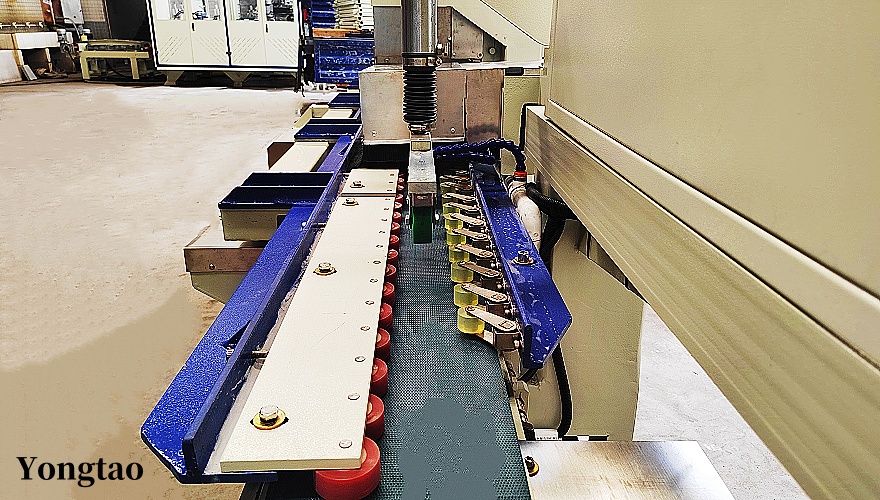

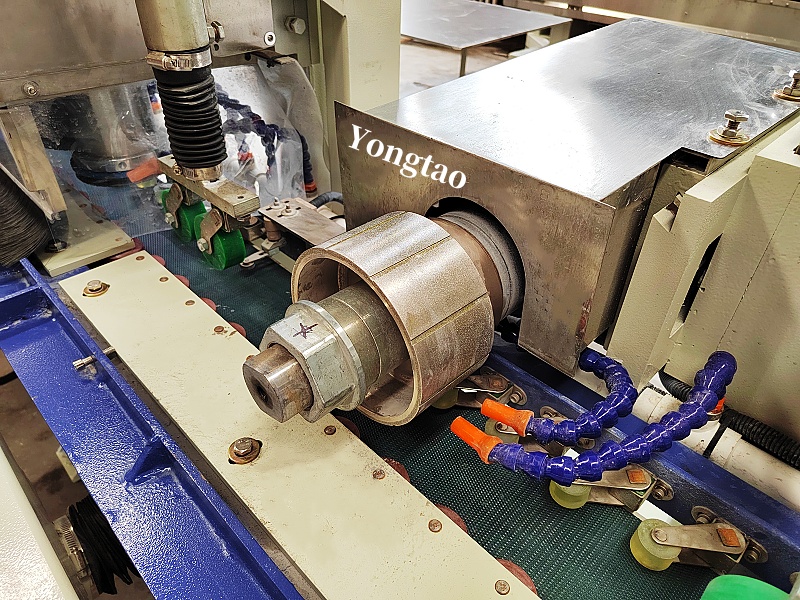

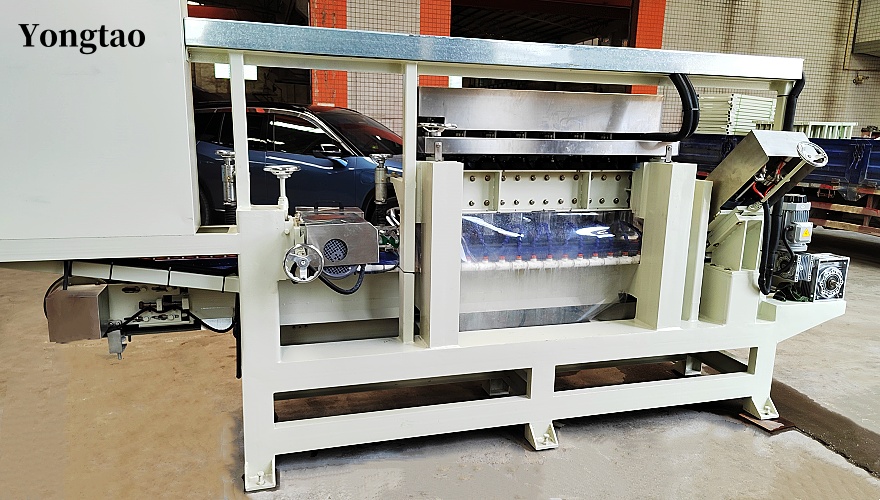

The manual lifting and lowering adjustment structure of the leveling thickness correction grinding wheel simplifies the adjustment of grinding thickness. The machine is also equipped with an electric baffle adjustment feature, allowing for quick adjustments of the brick size to improve operational efficiency, making it suitable for various stone processing needs.

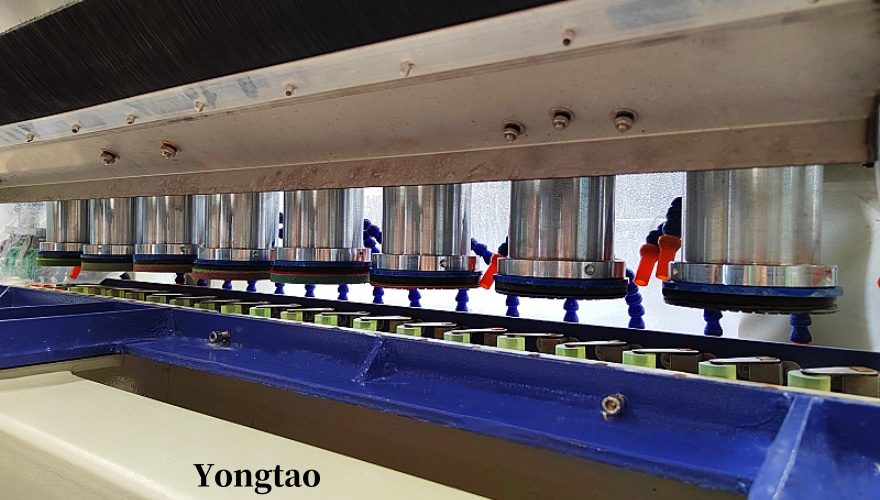

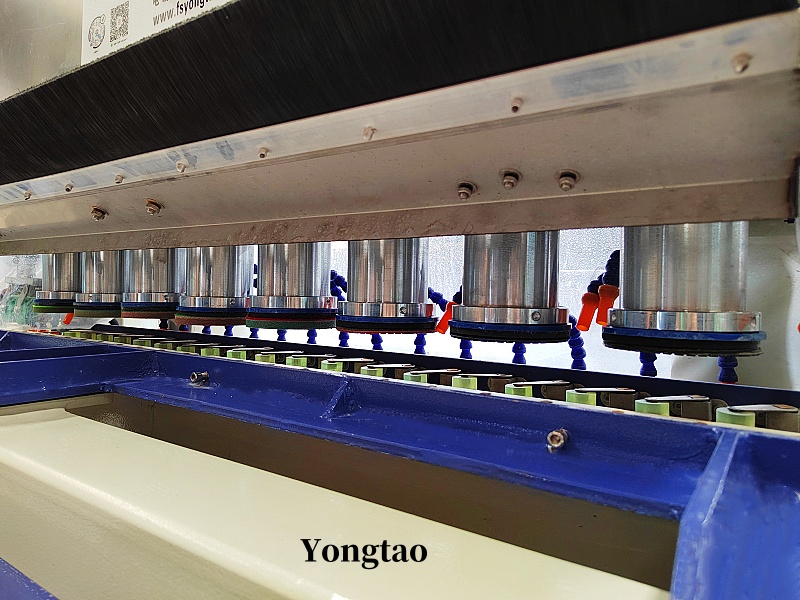

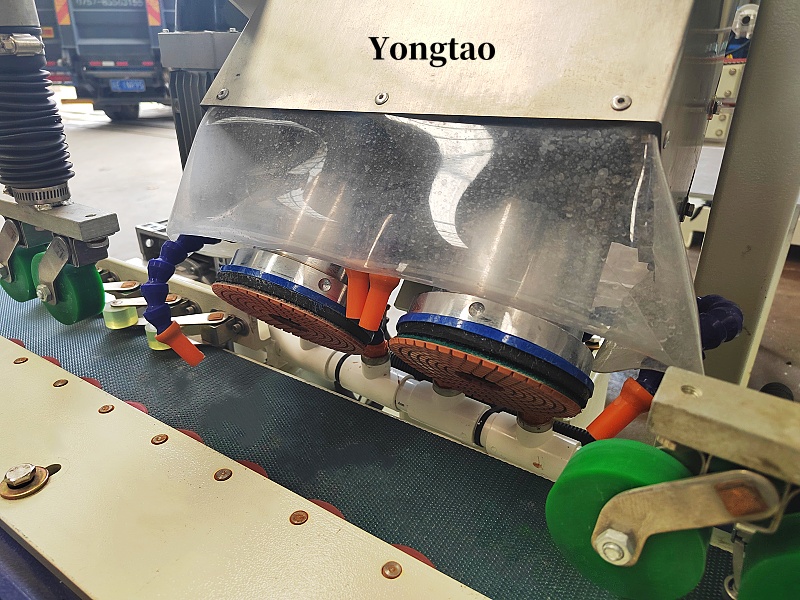

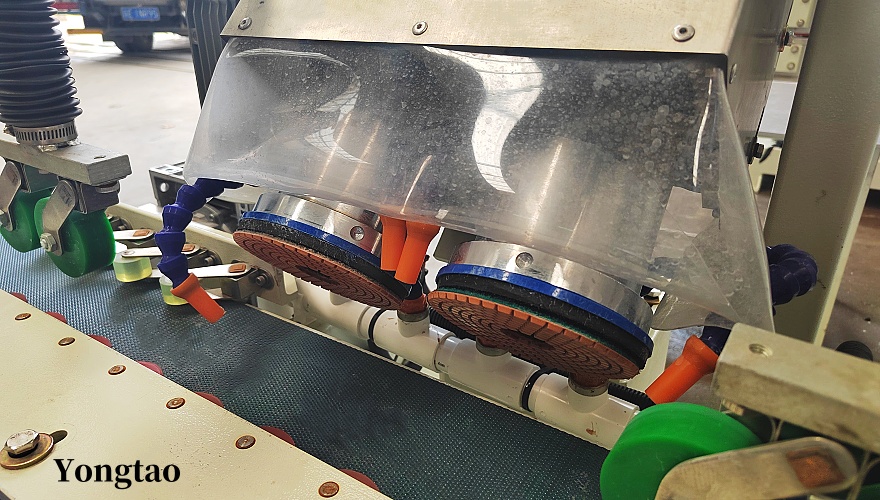

The YSPU-100 utilizes eight polishing heads, with water grinding discs measuring 125mm in diameter. By selecting different grit sizes of water grinding discs, polishing effects can be enhanced. Moreover, the pneumatic chamfer polishing function parallels surface polishing, allowing for slight chamfering of the stone's 90-degree edges to ensure every detail is exquisitely perfect.
Each polishing head features a pneumatic lifting design, facilitating adjustment to the appropriate pressure for polishing. The independent control switch allows operators to monitor the machine's status at any time, enabling easy startup and shutdown. The splash-proof cover design effectively maintains a clean working environment and enhances production efficiency.
Yongtao Machinery offers a variety of small stone polishing machines tailored to different processing needs, including marble polishing machines specifically designed for small-sized slabs. Please contact us with your processing materials, thickness, width, and polishing requirements, and we will customize a stone surface polishing machine that meets your needs, helping you achieve a smooth marble surface finish.
Technical parameters:
Serial Number | Name | Parameter |
1 | Number of Scraping and Thickness Setting Grinding Heads | 1 piece |
2 | Power of Scraping and Thickness Setting Motor | 7.5kw |
3 | Size of Scraping and Thickness Setting Grinding Wheel | Φ150x60mm (Electroplated Wheel) |
4 | Number of Stone Surface Polishing Grinding Heads | 8 pieces |
5 | Power of Stone Surface Polishing Motor | 1.1kw X8 pieces |
6 | Size of Stone Surface Polishing Grinding Head | Φ125mm (Water Grinding Disc) |
7 | Number of Chamfering Grinding Heads | 2 pieces |
8 | Power of Chamfering Motor | 1.1kw X2 pieces |
9 | Size of Chamfering Grinding Head | Φ125 (Water Grinding Disc) |
10 | Width Size of Main Belt | 200mm |
11 | Processing Width Size | 40 - 100mm |
12 | Processing Thickness | 40 - 80mm |
13 | Processing Speed | 1 - 2m/min |
14 | Total Power | 20.37kw |

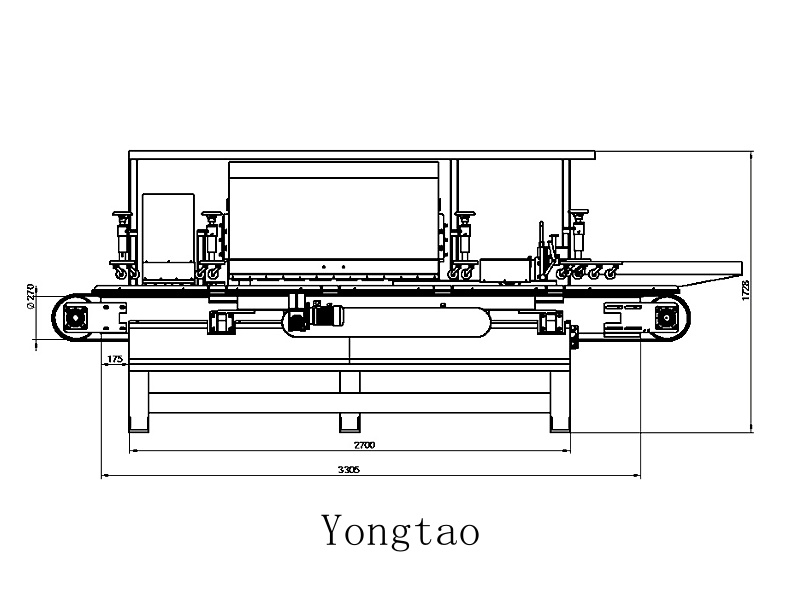

15 | Mechanical Dimensions | 3900x1200x1800mm |
16 | Weight | Approximately 2200kg |
