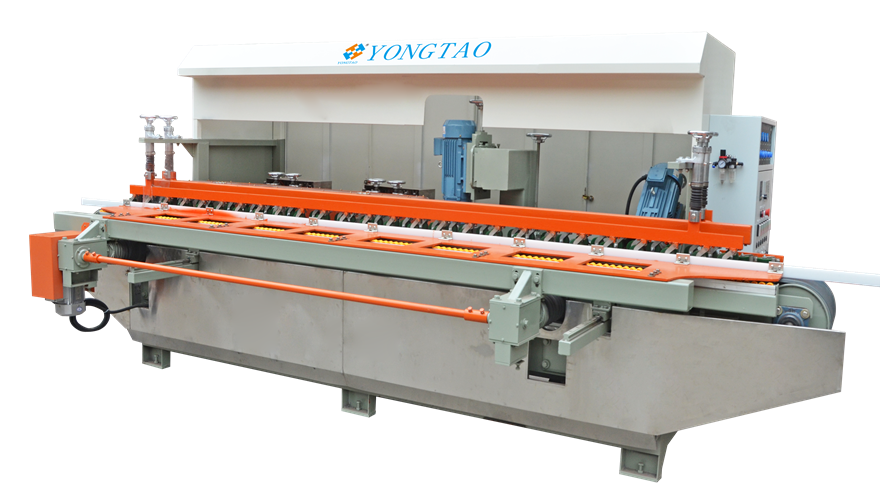

Description of YSKP-1200 3+4 Stone Groove Cutting And Polishing Machine

YSKP-1200 3+4 stone groove cutting and polishing machine is the latest product of Yongtao machinery, the granite cutting and polishing machine is specially designed by client’s requirement for stone grooving and polishing. The machine can process marble, artificial stone, granite etc materials. There are 3 heads in the front: the first head make bevel cutting, the second head make vertically cutting, and the third head make horizontally cutting.The direction of slab put is that the smooth surface will be downward. The cut off material will automatically falling down by gravity. And then the remaining material will be grooved and polished. The polishing parts adopt air pressure structure, which can ensure the material stable transmission. Due to this, the machine need a air compressor to assist. The machine can do grooving and polishing in one time.The polished product are brightness, don’t need to make waxing. It is very popular in stone groove processing factory.


Marble Slotting Polishing Machine:



Technical Parameter of YSKP-1200 3+4 Stone Groove Cutting And Polishing Machine

Conveyor motor

2.2kw

Cutting head motor

5.5kw*3pcs

Numbers of cutting head

3头

Diameter of blade

Φ250*60

Numbers of polishing head

4pcs

Diameter of polishing head

Φ150*30

Polishing head motor

3kw*4

Conveyor belt width

350mm

Maxi processing width

1000mm

Processing speed

1-3m

Processing thickness

30-60mm

Size of machine

4.5*1.9*1.7m

Total power

30.70kw

Weight

2000kg


We have the Marble polishing machine manufacturer and granite polishing machine supplier. And we have Marble polisher for sale.
